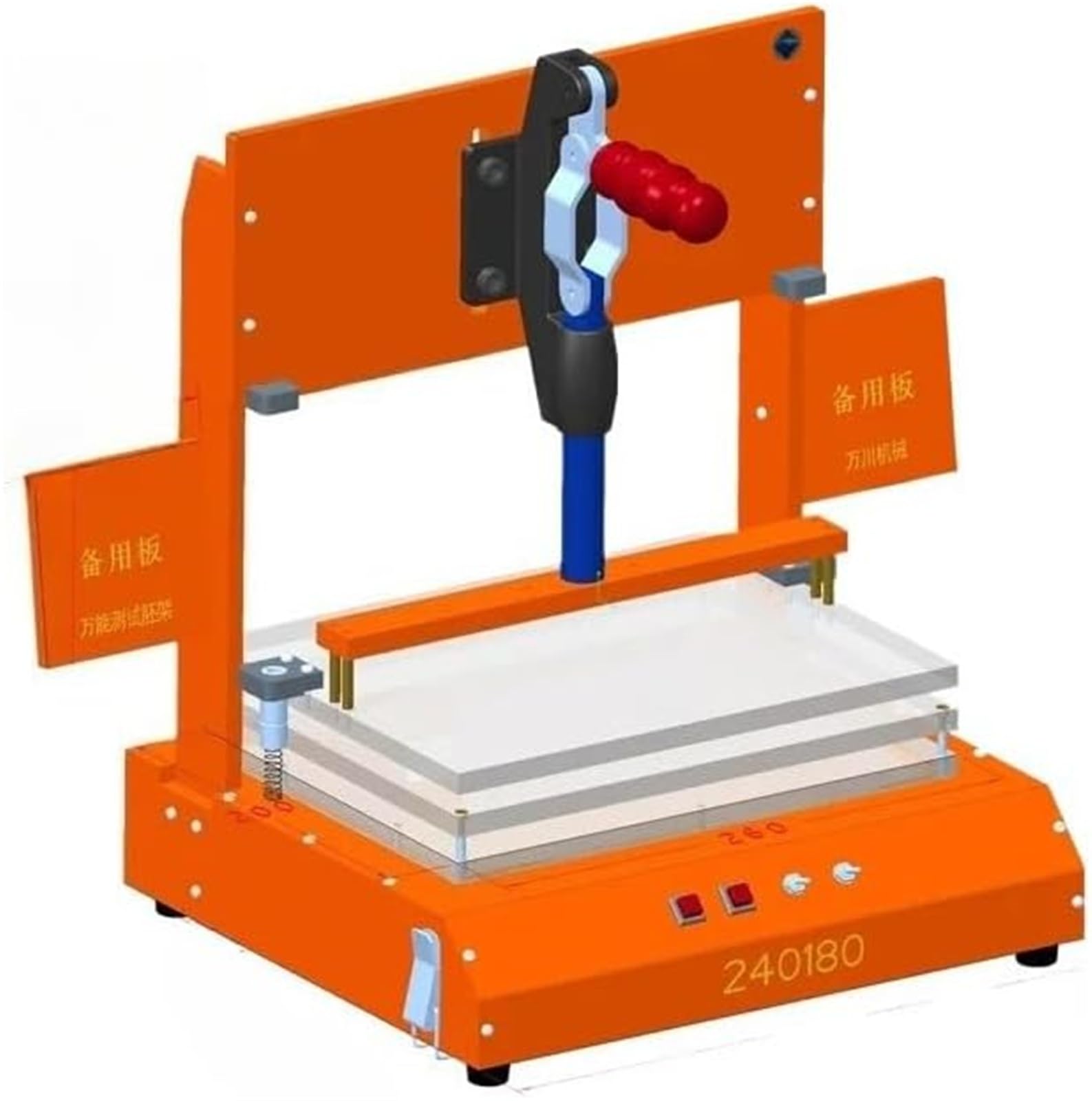

Universal PCB Test Frame | For Electronics Manufacturing Testing, Circuit Board Test Rack with Acrylic Plates

- 【Universal Compatibility】This PCB test fixture holds circuit boards up to 240×180mm with a 60mm test stroke, suitable for PCBA functional testing, prototype validation and assembly line quality inspection. The universal frame supports multiple PCB sizes to satisfy flexible testing demands.
- 【Durable Premium Materials】Adopts high-quality bakelite frame with outstanding insulation and structural stability, matched with 10mm thick transparent acrylic panels for clear visual observation and long service life. The sturdy bakelite fixture delivers stable performance in mass production workshops.
- 【Ergonomic & High-Efficiency Structure】Equipped with inclined ergonomic button panel for comfortable operation, 35mm lengthened bearings ensure smooth vertical movement and higher test accuracy. Quick-release wiring terminals speed up wiring and disassembly to greatly improve daily testing efficiency.
- 【Fully Adjustable Flexible Configuration】Swapable A/B/C acrylic panels adapt to various PCB layouts. Adjustable gap between B and C panels, 90° rotatable C adapter plate and four pre-reserved positioning pin holes offer great flexibility for customized test layouts.
- 【Full Set of Supporting Accessories】Comes with guide rods, bearings, spring positioning pins, copper standoffs, screws, acrylic test panels and spare plates for instant assembly. The flip cover design facilitates soldering and wiring work, forming an all-in-one test rack for electronic circuit inspection.
